HVM

HORIZONTAL BAG CLOSING MACHINE

HVM – Ideal complement

The combination of a horizontal bag closing machine HVM with integrated REVO bag maker(s) allows a multitude of bag types. Thus, the packaging can be adapted to changing marketing requirements without much effort.

The bags are filled either by the forming tube of the bag maker(s) or directly at the downstream HVM closing line. Thus, the machine can easily be adapted to most different products. Powder products can be packaged almost dust free, and fragile products can be carefully passed directly from the weigher into the waiting prefabricated tubular bag. The number and type of the functional modules are dependent on the customer-specific requirements.

The HVM basically disposes of a vibration module and a sealing module for the bag head. Additional modules are available for head folding by 90°, head folding by 270°,
head labeling, back labeling, hot glue, clip closure (with wire or plastic clip) and various dosing and feeding modules. Servo drives allow very short setup times. The corresponding control parameters are stored in the Industrial PC control with 300 programs (optional up to 1,000) and can be accessed via the color touch screen on the HVM.

Type REVO HVM bag closing line Type REVO HVM bag closing line
Bag width 40-200 mm
Bag depth max. 100 mm
Bag height (bag upright) min./max. 90-320 mm
Performance (in single or double stroke) 60 / 120 cycles/min
Films hot sealable
composite films



HVM - HORIZONTAL BAG CLOSING MACHINE - inno-tech Verpackungsmaschinen GmbH

HVM

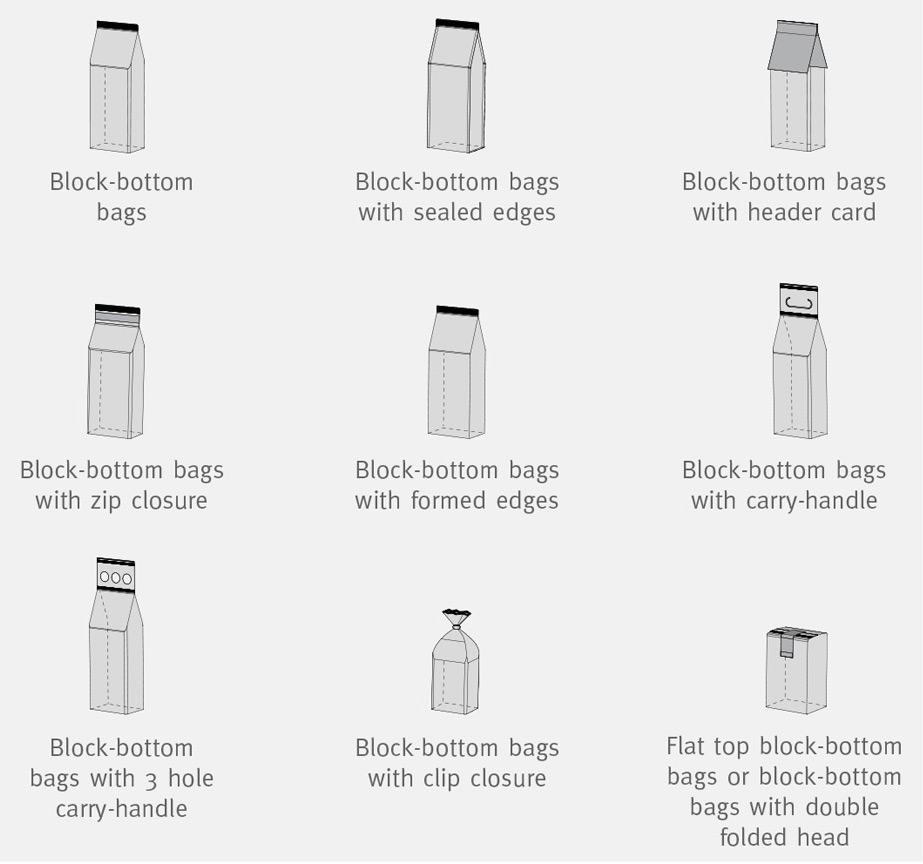

HVM - HORIZONTAL BAG CLOSING MACHINE - Bag Types
